Slab Ceramic Resistor

Non-inductive, high power slab resistors are available in a few different materials:
Type 500BA slab resistor for high resistance applications
Type 500SP slab resistors for high power applications
Type 500AS slab resistors for high voltage, high energy and high resistance pulse applications

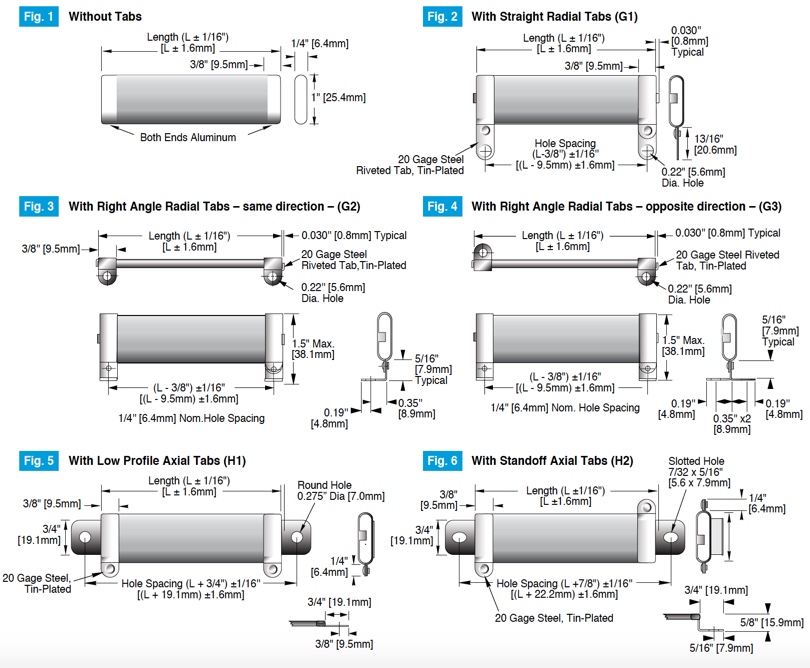

Electrical Specifications

Type 500SP high power slab resistors

Type Length,
inch (mm)		 Resistance range,
Ohms		 Average power
at 40°C
(104°F)
Amb., Watts		 Peak energy at40°C
(104°F)
Amb., Joules		 Peak voltage,
Volts		 Resistor weight,
Grams
ELECTRICAL SPECIFICATIONS
502SP 2 (51) 0.2-110 30 150 900 15
503SP 3 (76) 0.3-190 45 290 1900 22.5
504SP 4 (102) 0.4-280 60 480 2800 30
506SP 6 (152) 0.8-450 90 800 4700 45
508SP 8 (203) 1.0-630 120 1100 6700 60
510SP 10 (254) 1.3-800 150 1400 8500 75

Type 500AS high voltage and high energy slab resistors

Type Length,
inch (mm)		 Resistance range,
Ohms		 Average power
at 40°C
(104°F)
Amb. (Watts)		 Peak energy
at 40°C
(104°F)
Amb., Joules		 Peak voltage,
Volts		 Resistor weight,
Grams
ELECTRICAL SPECIFICATIONS
502AS 2 (51) 5-1200 12 1500 8500 16
503AS 3 (76) 9-2200 18 2700 16000 24
504AS 4 (102) 13-3200 24 4000 23000 32
505AS 5 (127) 17-4200 30 5200 30000 40
506AS 6 (152) 21-5200 36 6400 36000 48
507AS 7 (178) 25-6200 42 7700 43000 56
508AS 8 (203) 29-7200 48 8900 50000 64
509AS 9 (229) 33-8200 54 10100 57000 72
510AS 10 (254) 37-9200 60 11400 65000 80

Type 500BA high resistance slab resistors

Type Length,
inch (mm)		 Resistance range,
Ohms		 Average power
at 40°C
(104°F)
Amb. (Watts)		 Peak energy
at 40°C
(104°F)
Amb., Joules		 Peak voltage,
Volts		 Resistor weight,
Grams
ELECTRICAL SPECIFICATIONS
502BA 2 (51) 1200-110000 10 700 3000 16
503BA 3 (76) 2200-210000 14 1200 5400 24
504BA 4 (102) 3200-300000 20 1800 8000 32
506BA 6 (152) 5200-490000 30 2900 13000 48
508BA 8 (203) 7200-680000 38 4100 18000 64
510BA 10 (254) 9200-870000 48 5200 22000 80
